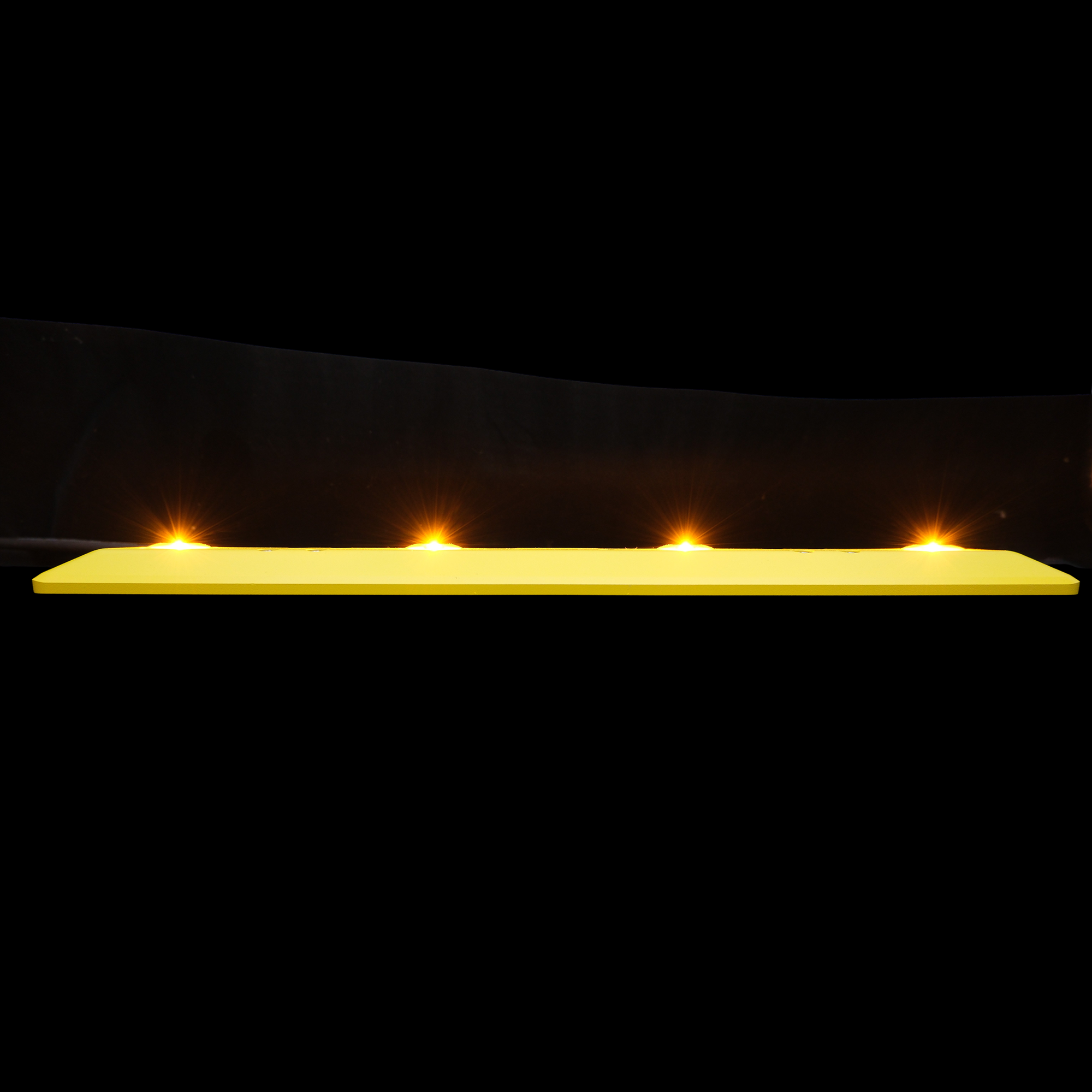

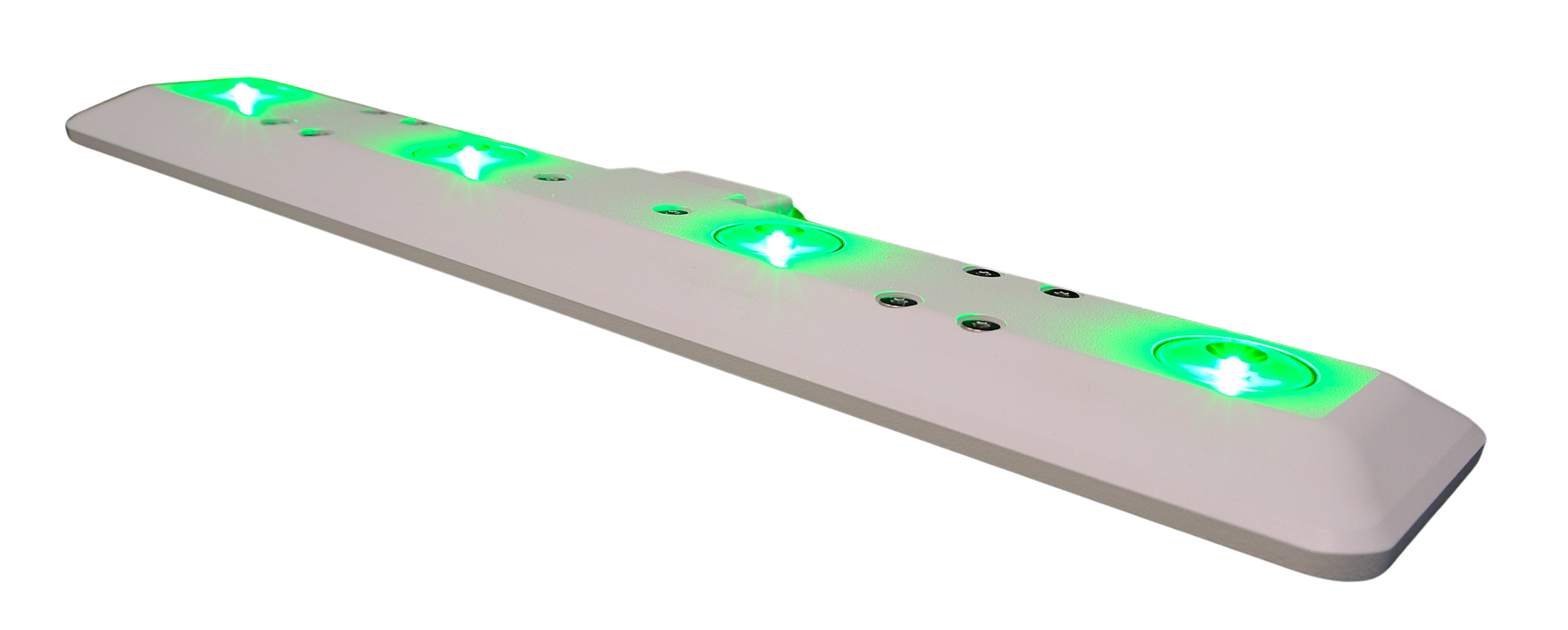

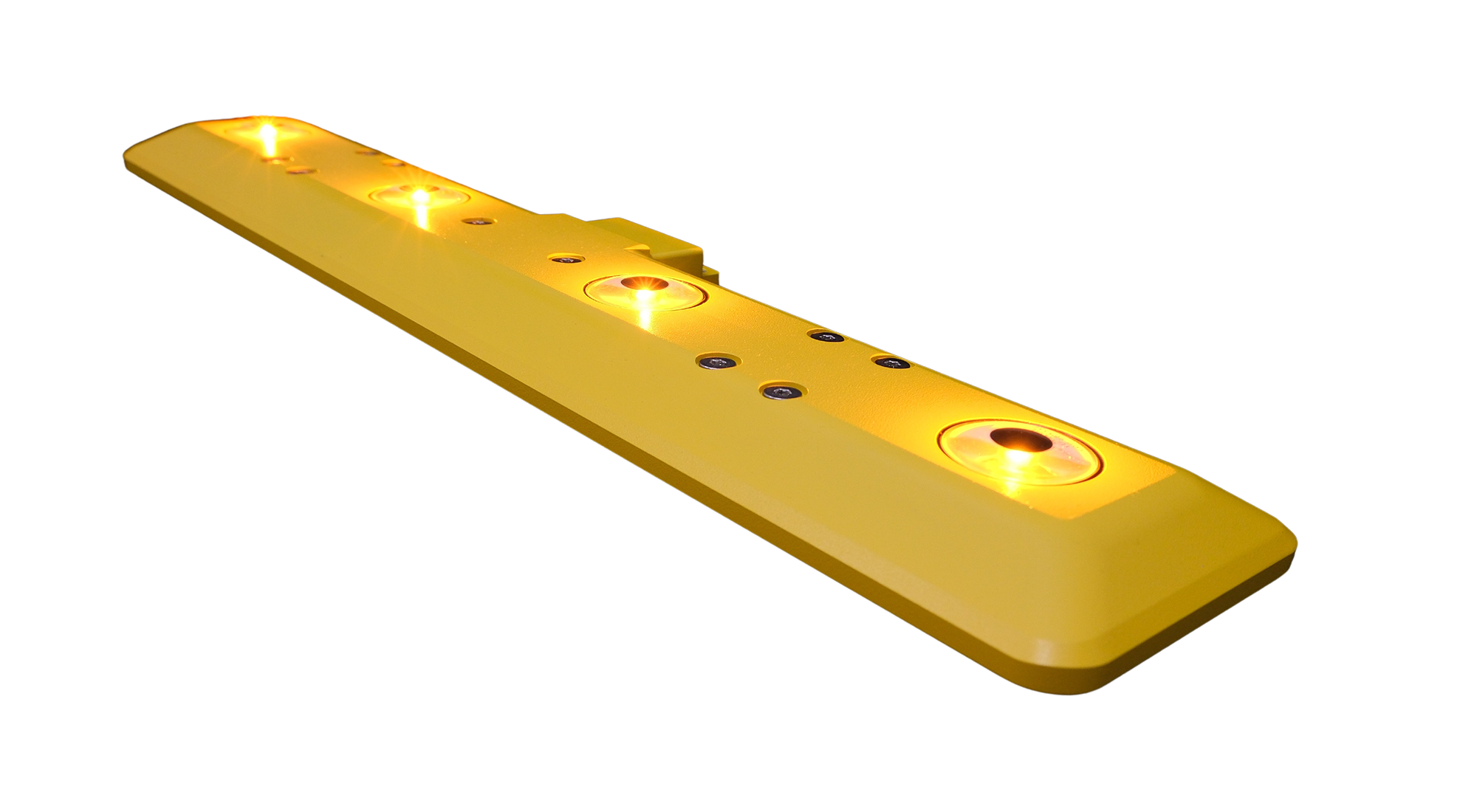

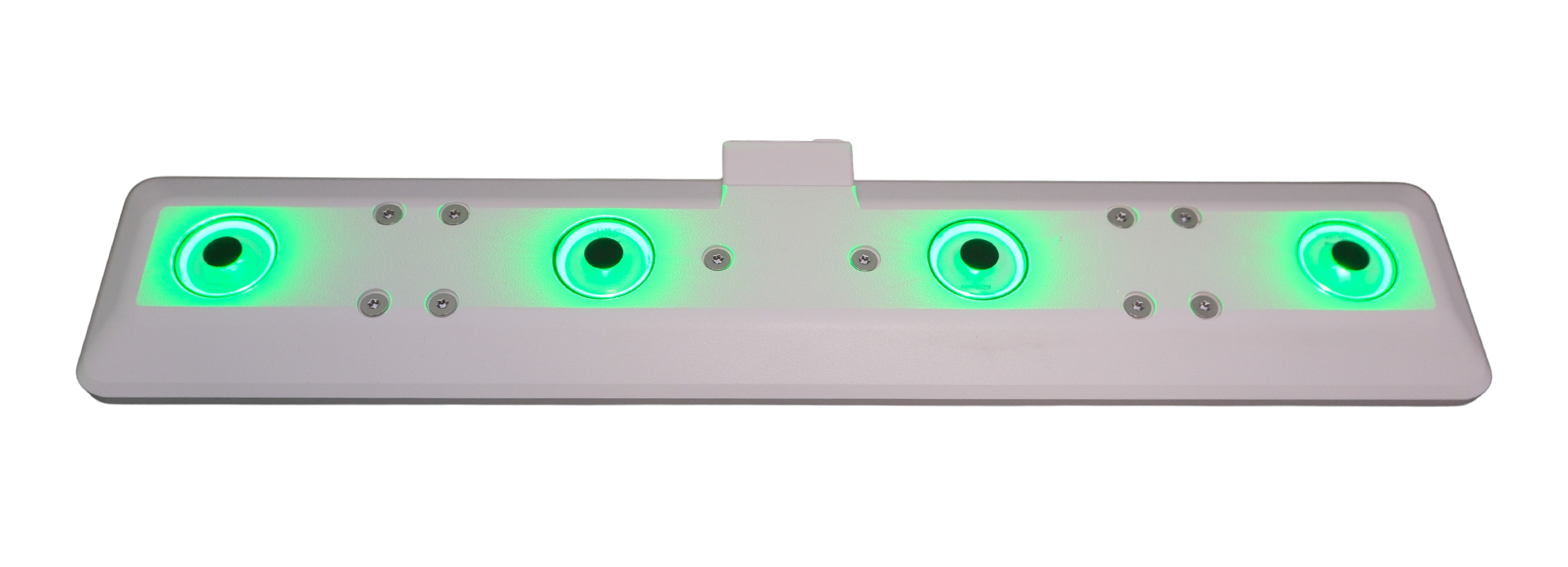

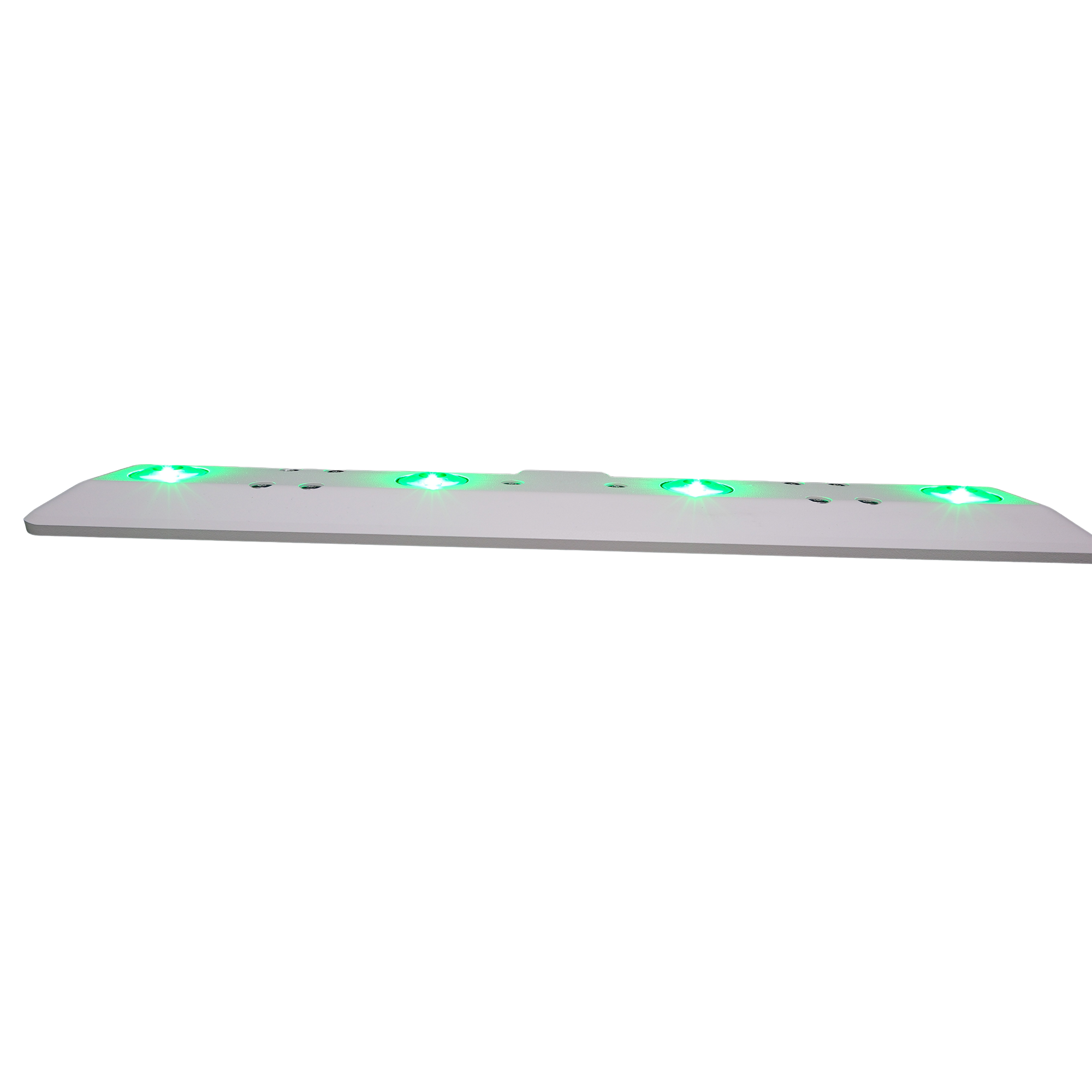

TDx – TD/PM Circle-H lighting system
TD/PM is a robust and very low projection LED light for Helipad. Designed in accordance with CAP437 and ICAO standard, this light is design to last.

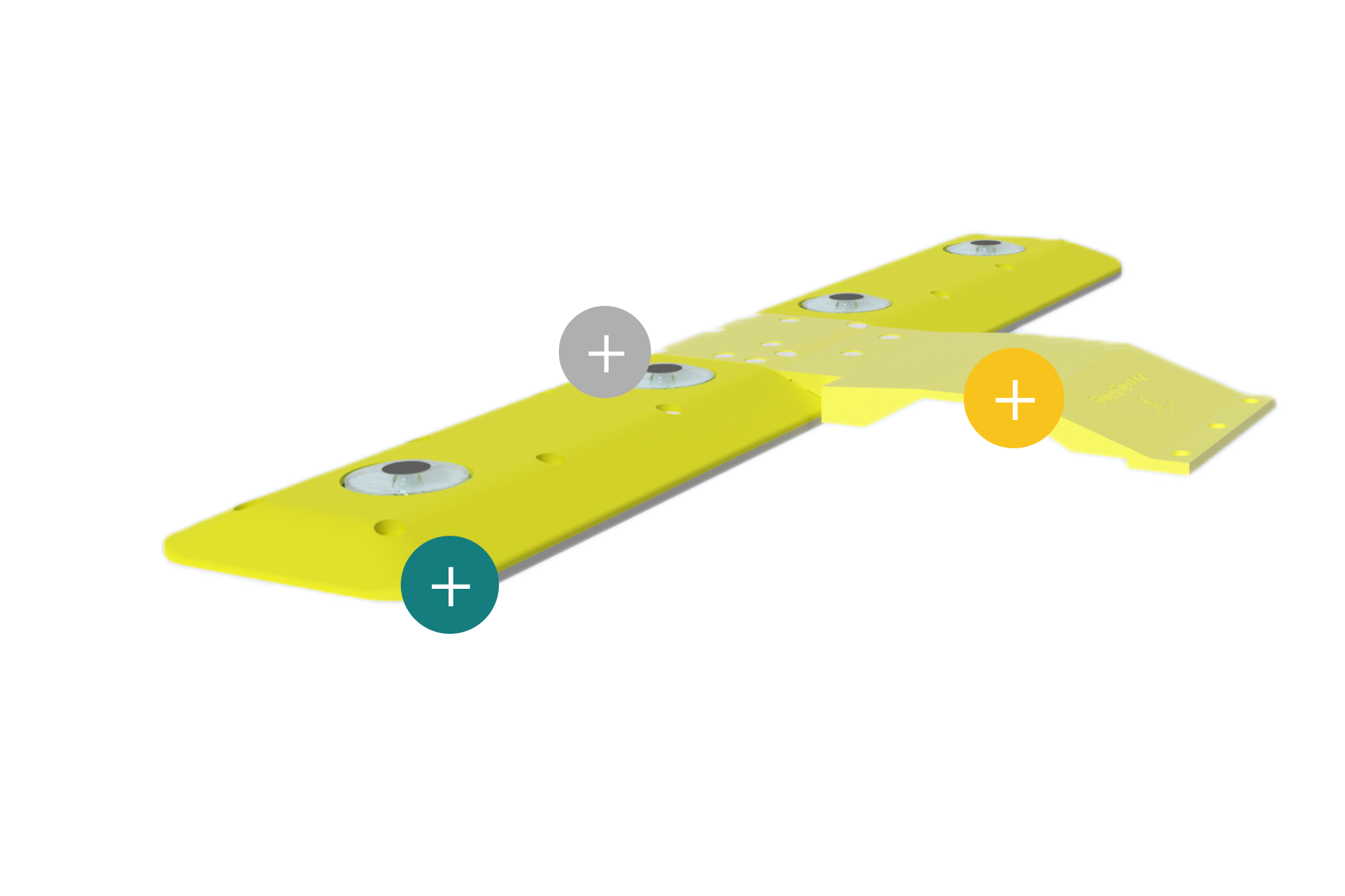

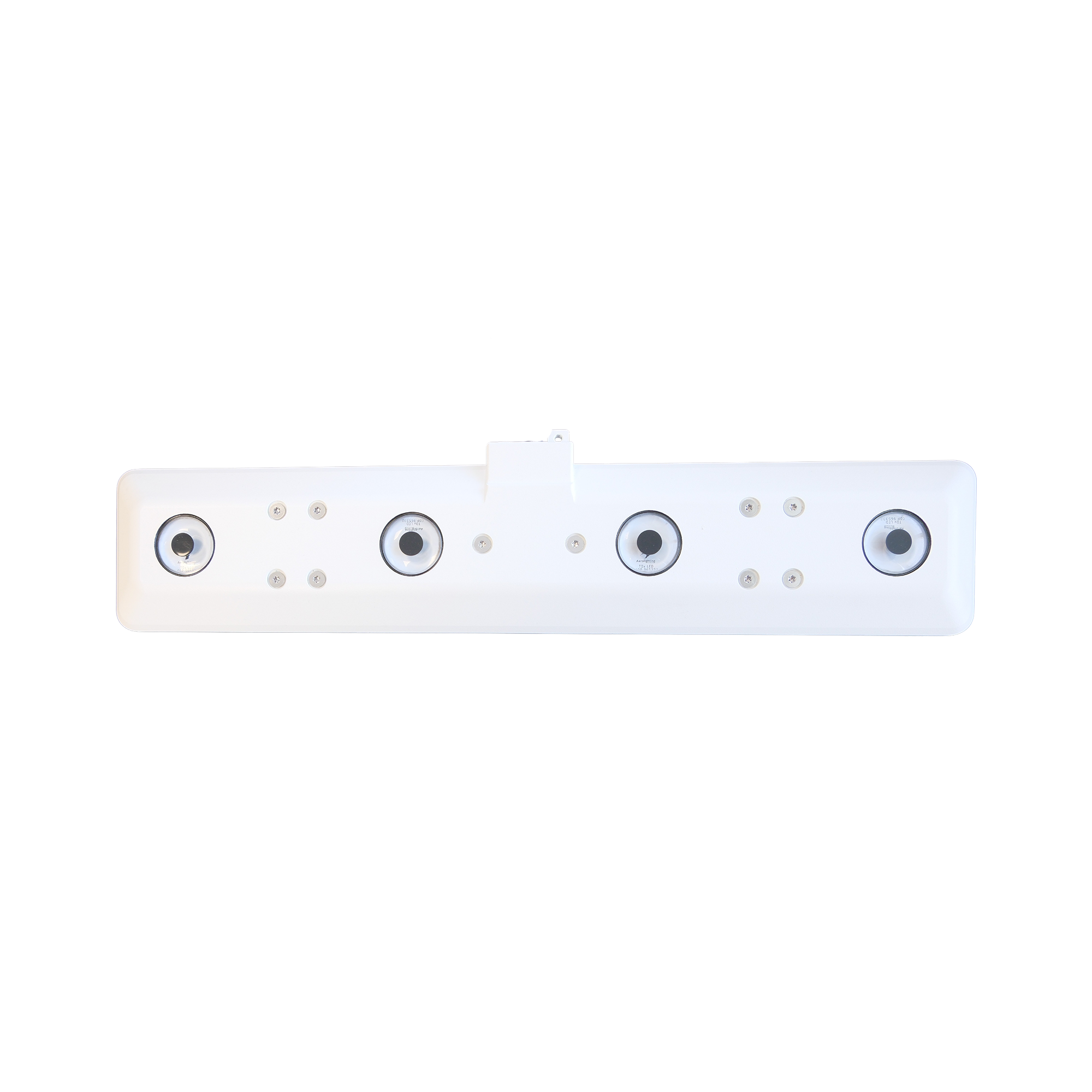

Quick, Efficient, Fully Sealed Connection System

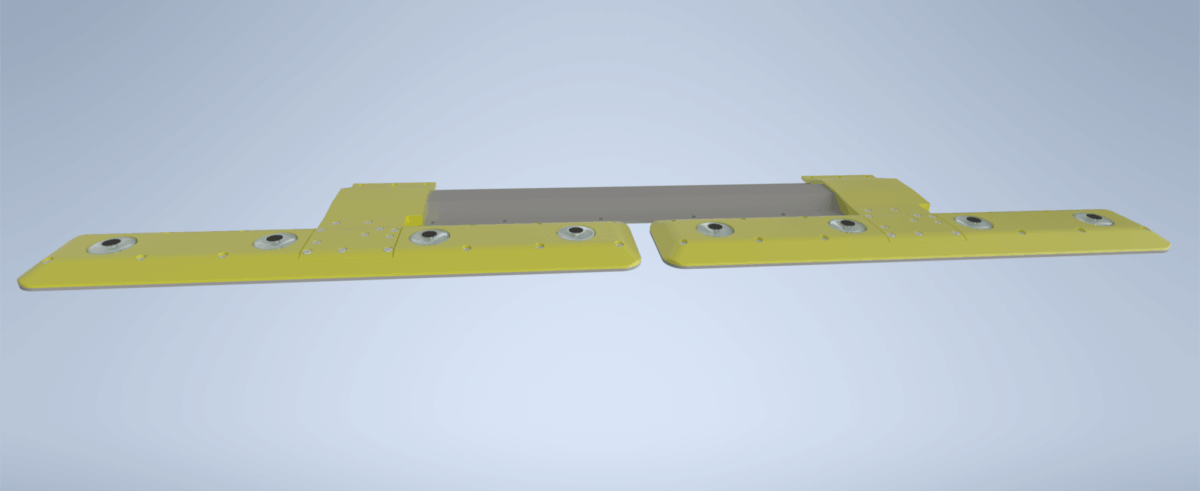

A bespoke quick-connect interface enables you to daisy-chain two lamps directly onto the module—no external junctions required. The precision-molded seals guarantee a perfect IP-rated barrier, ensuring rapid installation, reliable electrical continuity, and complete protection against moisture and dust.
Fully CNC-Machined from a Solid Aluminum Block
Precision-crafted from a single billet of offhsore-grade aluminum, every component is milled via CNC to deliver unmatched strength, dimensional accuracy, and a hermetic seal. This meticulous manufacturing process upholds AeroLighting’s legacy of reliability, robustness, and waterproof performance.

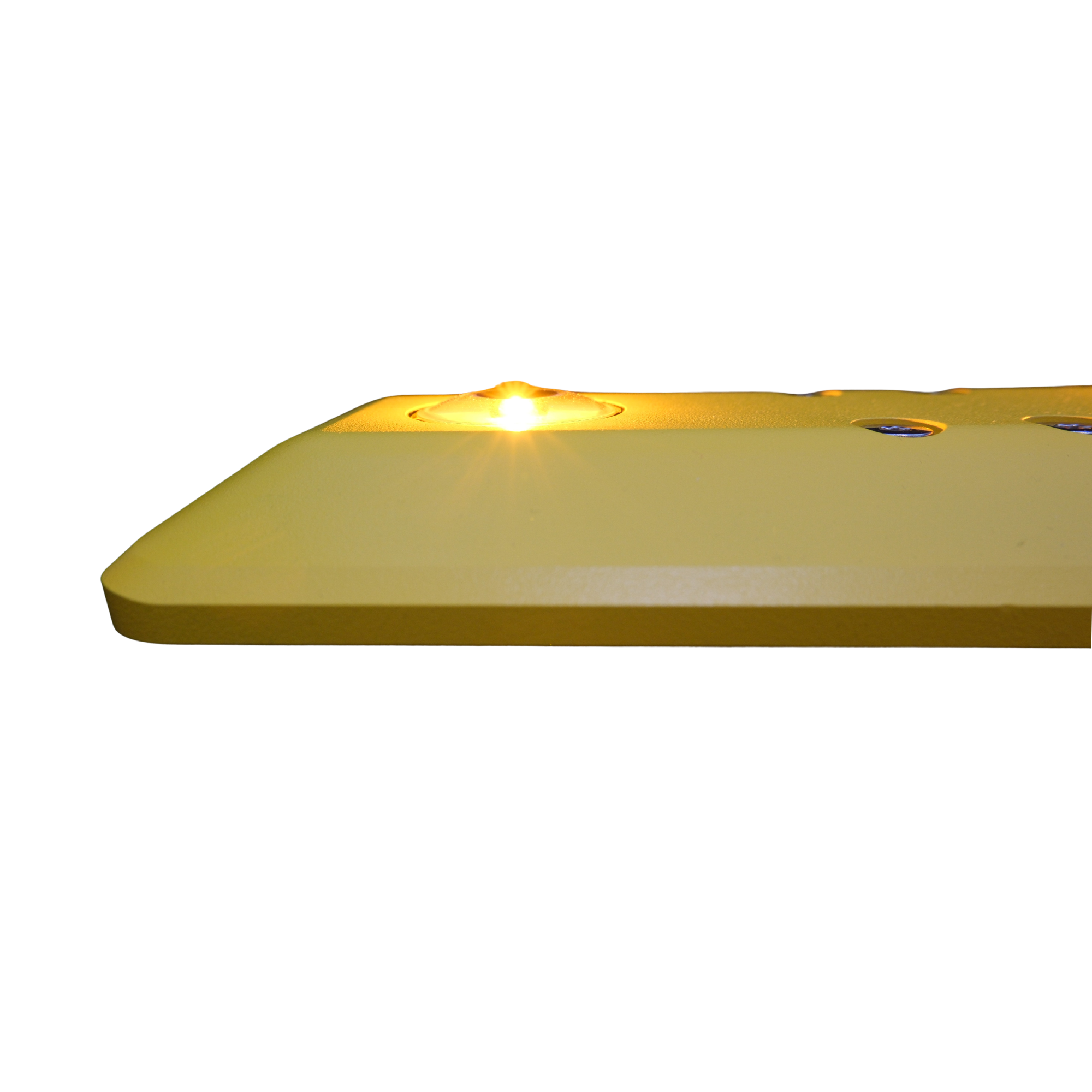

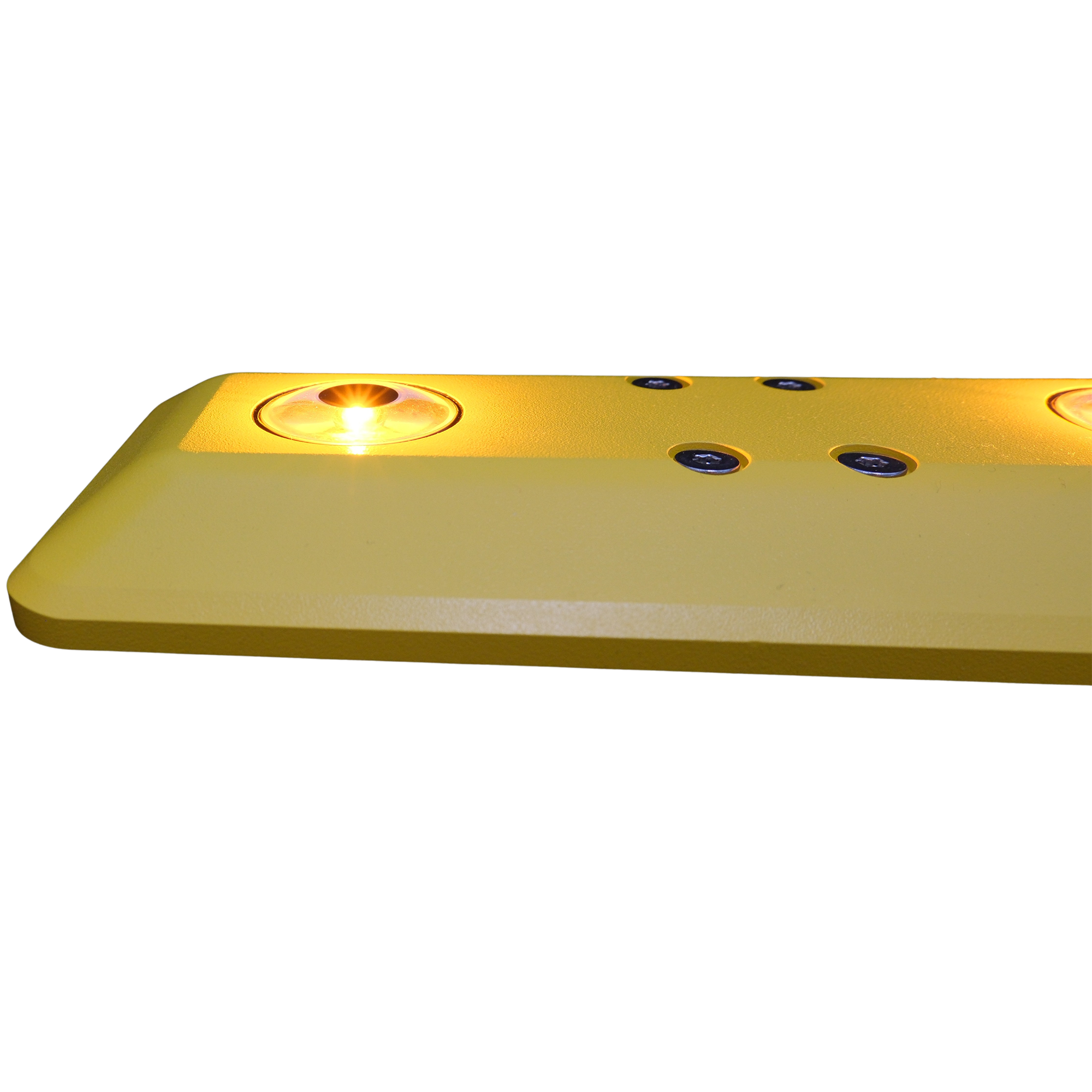

2.8 mm Glass Protrusion for Maximum protection
The glass extends by only 2.8 mm—just enough height to guarantee optimal photmetric oerformence while minimizing exposure to impact. This minimal protrusion reduces the likelihood of shocks or chips under external force, ensuring both enhanced resistance to mechanical stress and a sleek, low-profile design.
products in stock
TD/PM is a robust and very low projection LED light for Helipad. Designed in accordance with CAP437 and ICAO standard, this light is design to last.
This product is designed for very high solicitation. With an increased static and dynamic load capacity, our product reduces the possibility of damage.
The light is totally and perfectly waterproof, not for a limited period but for his whole lifetime! This light is the result of over 20 years of Aerolighting experience in the design and manufacture of aviation lighting.
Its waterproofness, mechanical resistance, the care given to the photometry, the simplicity of the installation, the possibilities of digital control/monitoring make it the ideal product in most situations.
This lamp is made of aluminum (optional
| Design | Segment light for TD-PM and circle |
|---|---|
| Material | Aluminium |
| Dimensions | Lenght 520mm Height: 19mm |
| Use | ICAO ASPSL, CAP437 TD-PM (circle and H) |
| Compliance | ICAO Annex 14 Vol II, CAP437 |
| Color | Green, Yellow |
| Power | ~6W per segment |
